The Phantom Pumps XT-3 Centrifugal, Self-Priming Pump

The XT-3 Pump

The Phantom Pumps XT-3 pump is a state-of-the-art addition to the Phantom's XT Series. Crafted for unparalleled performance, the XT-3 pump integrates advanced features and design improvements to deliver enhanced hydraulic efficiency and superior solids handling capabilities. Adding further value, Phantom Pumps provides a robust corrosion protection solution for the XT Series. Each XT-3 pump is meticulously coated with urethane mastic, a high-grade protective coating, at no extra charge.

The Benefits & Advantages of the XT-3

Designed with precision and efficiency in mind, the XT-3 pump excels in delivering exceptional performance and reliability. Its advanced engineering ensures high levels of durability and longevity, making it a cost-effective choice for businesses. With its powerful and energy-efficient motor, the XT-3 pump optimizes productivity while minimizing operational costs. Additionally, its user-friendly design simplifies maintenance and reduces downtime, enhancing overall operational efficiency.

High Performance

The XT-3 pump offers robust performance with high flow rates. It's a versatile solution for high-volume pumping applications.

Easy Maintenance

The XT-3 pump features a removable rotating assembly, simplifying maintenance and reducing operational downtime.

Shim-less Adjustment

The pump includes an external shim-less adjustment mechanism, facilitating easy adjustment of the impeller and wear plate clearance without a complete disassembly.

Efficient Impellers

The XT-3 pump uses multi-vane impellers to achieve maximum efficiencies and effective handling of solids and slurries.

Replaceable Wear Plate

This pump features a replaceable wear plate, which extends the pump's lifespan and reduces maintenance costs. The wear plate can be replaced without disassembling the entire pump.

Back Pull-Out Design

The XT-3 pump's design includes a back pull-out feature, enabling easy disassembly for repair or inspection while keeping the casing in place.

Automatic Air Release

The pump includes an automatic air release system during priming, allowing for smooth operation. The pump primes and reprimes fully automatically, eliminating the need for a foot valve.

Dual Protection System

The XT-3 pump incorporates a dual protection system, including a seal leak detector and a bearing temperature sensor for early detection of potential problems.

Versatile Applications

With its design and robust features, the XT-3 pump can be used in a variety of industries including wastewater management, construction, agriculture, and more.

Pump Data

Net Weight:
183kg (404lbs)
Shipping Weight:
205kg (452lbs)
Impeller Diameter:
222.25mm (8 3⁄4”)
RPM range:
650 to 2150 RPM
Max. Solids:
63.5mm (2 1⁄2”)

Self-Priming Head

650 RPM 1.5m (5ft) - 750 RPM 1.8m (6ft)
850 RPM 2.4m (8ft) - 950 RPM 3.0m (10ft)
1050 RPM 4.0m (13ft) - 1150 RPM 4.9m (16ft)
1250 RPM 5.5m (18ft) - 1350 RPM 5.8m (19ft)
1450 RPM 6.4m (21ft) - 1550 RPM 6.4m (21ft)
1650 RPM 6.7m (22ft) - 1750 RPM 6.7m (22ft)
1850 RPM 7.6m (25ft) - 1950 RPM 7.6m (25ft)
2050 RPM 7.6m (25ft) - 2150 RPM 7.6m (25ft)

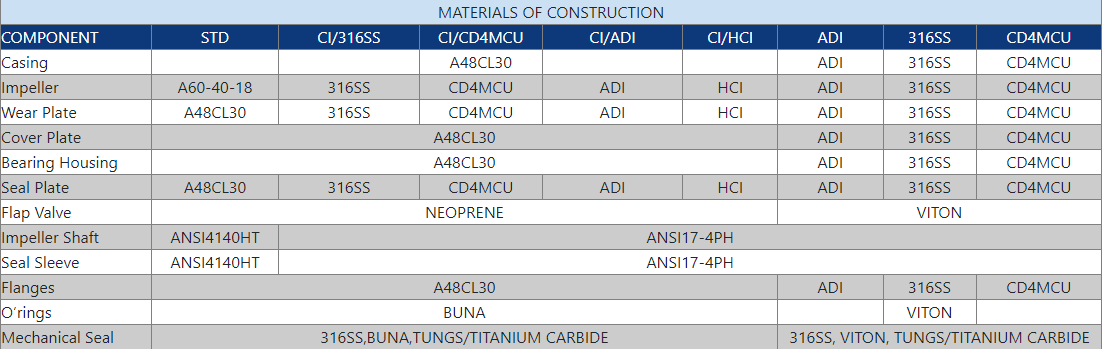

Materials of Construction

Check the net positive suction head (NPSH) before using this table

Component
STD
CI / 316SS
CI / CD4MCU
CI / ADI
CI / HCI
ADI
316SS
CD4MCU
Casting
A48CL30
ADI
316SS
CD4MCU
Impeller
A60-40-18
316SS
CD4MCU
ADI
HCI
ADI
316SS
CD4MCU
Wear Plate
A48CL30
316SS
CD4MCU
ADI
HCI
ADI
316SS
CD4MCU
Cover Plate
A48CL30
ADI
316SS
CD4MCU
Bearing Housing
A48CL30
ADI
316SS
CD4MCU
Seal Plate
A48CL30
316SS
CD4MCU
ADI
HCI
ADI
316SS
CD4MCU
Flap Valve
Neoprene
Viton
Impeller Shaft
ANSI4140HT
ANSI17-4PH
Seal Sleeve
ANSI4140HT
ANSI17-4PH
Flanges
A48CL30
ADI
316SS
CD4MCU
O Rings
Buna
Viton
Mechanical Seal
316SS, Buna, Tungs/Titanium Carbide
316SS, Viton, Tungs/Titanium Carbide
